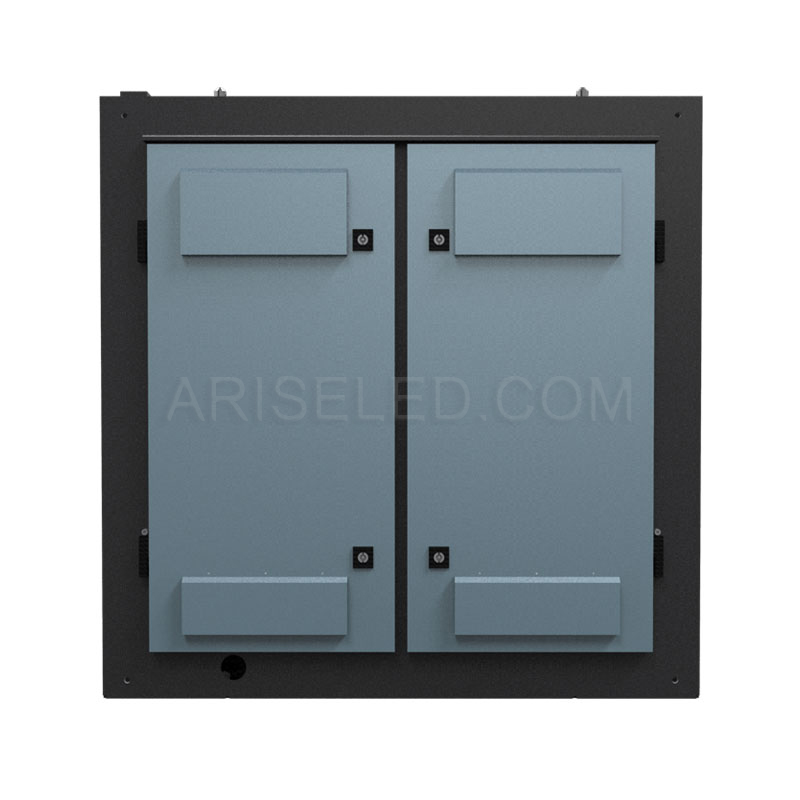

Outdoor Fixed LED Displays

Product Details

Outdoor P12 LED Display Parameters(DIP)

Model

FO-12D

Parameters

Speci.

Pixel Pitch

12mm

Pixel Composition

1R1G1B

LED Type

DIP346

Display brightness

6000cd/m² (adjustable

Color Temperature

2500K to 10000K

Viewing Angle

H: 120°; V:60°

Pixel Density

6944pixels/m²

Minimum Viewing Distance

≥12 M

Module Size

192mm×96mm

Cabinet Size

W960mm×H960mm×D180mm

Cabinet Weight

45 kg/cabinet

Cabinet Size

0.9216 m²

Cabinet Material

Iron

Cabinet Aspect Ratio

1:1

Cabinet Resolution

80×80 pixels

Grey Scale

16bithigh refresh)14bitcommon refresh

Driving Mode

1/4 scan, constant current

Processing Depth

65536 scales

Colors

281.4 trillion

LED wave length

R: 620~630nm  G: 520~535nm B: 465~475nm

Brightness Control

Manual/Automatic

Display contrast

5000:1

Frame Rate

50/60 Hz

Refresh Rate

3200 Hzhigh refresh) 1000 Hz(common refresh)

Input Voltage

110~220VAC±15%

Input Power Frequency

50~60 Hz

Max. Power Consumption

650W/cabinet

Ave. Power Consumption

200W/cabinet

Life Span

≥100,000 hours

Input Signal

RF,S-VIDEO,RGBHV,YUV,YC & COMPOSITION,etc

Communication Collection

CAT5 Cable: ≤140m;

Multi-mode fiber ≤500m; Single mode fiber ≤20km)

Installation Method

Hanging /wall mounted/other customized installation methods.

Protection Scale

IP65

Operation Humidity

0℃~+45℃/10~90%RH

Storage Humidity

-10℃~+55℃/10~90%RH
