Indoor P7.62 LED Display Parameters
|
|
Model
|
F I-7.62
|
|
Parameters
|
Speci.
|
|
Pixel Pitch
|
7.62mm
|
|
Pixel Composition
|
1R1G1B
|
|
LED Type
|
3-in-1 SMD3528
|
|
Display brightness
|
1500cd/m² (adjustable）
|
|
Color Temperature
|
2500K to 10000K
|
|
Viewing Angle
|
H: 160°; V:160°
|
|
Pixel Density
|
17222 pixels/m²
|
|
Minimum Viewing Distance
|
≥7.62 M
|
|
Module Size
|
244mm×122mm
|
|

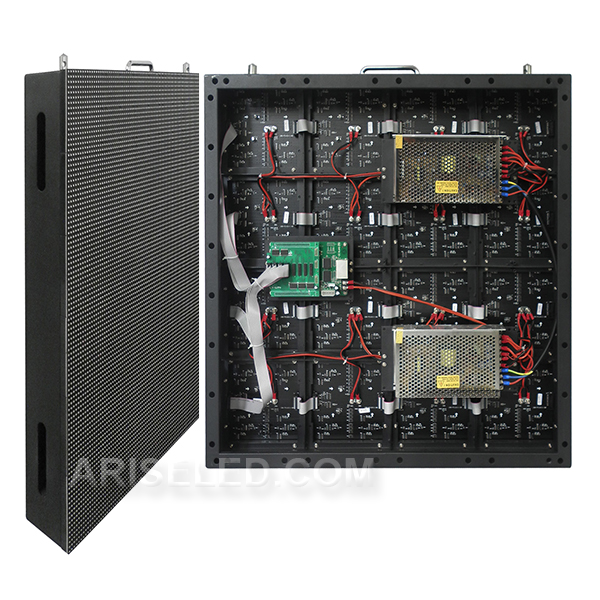

Cabinet Size
|
W732mm×H732mm×D90mm
|
|
Cabinet Weight
|
22 kg/cabinet
|
|
Cabinet Size
|
0.5258 m²
|
|
Cabinet Material
|
Iron
|
|
Cabinet Aspect Ratio
|
1:1
|
|
Cabinet Resolution
|
96 ×96 pixels；
|
|
Grey Scale
|
16bit（high refresh)、14bit（common refresh）
|
|
Driving Mode
|
1/8 scan, constant current
|
|
Processing Depth
|
65536 scales
|
|
Colors
|
281.4 trillion
|
|
LED wave length
|
R: 620~630nm G: 520~535nm B: 465~475nm
|
|
Brightness Control
|
Manual/Automatic
|
|
Display contrast
|
5000:1
|
|
Frame Rate
|
50/60 Hz
|
|
Refresh Rate
|
3200 Hz（high refresh) 、1000 Hz(common refresh)
|
|
Input Voltage
|
110~220VAC±15%
|
|
Input Power Frequency
|
50~60 Hz
|
|
Max. Power Consumption
|
320W/cabinet
|
|
Ave. Power Consumption
|
100W/cabinet
|
|
Life Span
|
≥100,000 hours
|
|
Input Signal
|
RF,S-VIDEO,RGBHV,YUV,YC & COMPOSITION,etc
|
|
Communication Collection
|
CAT5 Cable: ≤140m;
Multi-mode fiber ≤500m; Single mode fiber ≤20km)
|
|
Installation Method
|
Hanging /wall mounted/other customized installation methods.
|
|
Protection Scale
|
IP43
|
|
Operation Humidity
|
0℃~+45℃/10~90%RH
|
|
Storage Humidity
|
-10℃~+55℃/10~90%RH
|
