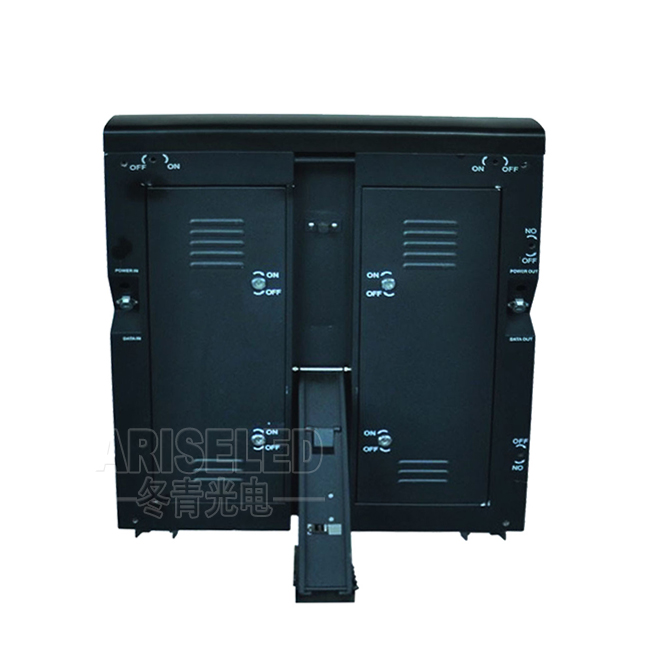

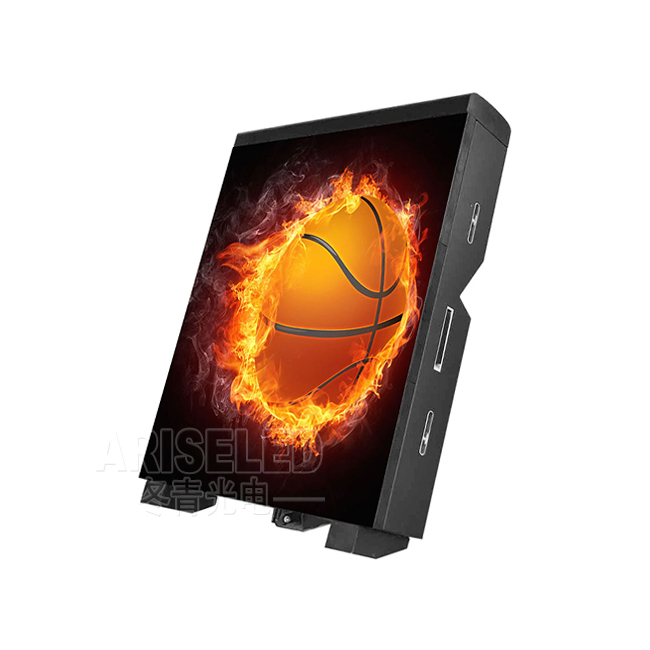

P10/B Stadium Perimeter LED

Pixel Pitch	10 mm (Indoor SMD) 10 mm (Outdoor SMD)
Pixel Density	10000 Pixels/m²
Pixel Composition	RGB 3 in1
Cabinet Type	Steel (Aluminum optional)
Cabinet Dimension (WHThickness)	960mm960mm120mm

Cabinet Resolution

96*96 Pixels

Application: Stadium, football match, basketball match, etc.

Online Services Send Email Download Product Specification

Product Details

	Item	Parameters	Parameters
Module Parameters	Pixel Pitch	10 mm (Indoor SMD) 10 mm (Outdoor SMD)	10 mm (Outdoor DIP)
	Pixel Density	10000 Pixels/m²	10000 Pixels/m²
	Pixel Composition	RGB 3 in1	1R1G1B
	LED Specification	SMD 3528 SMD 3535	DIP 346
	Module Resolution	32*16 Pixels	16*16 Pixels
	Module Size（W×H）	320mmx160mm	160mmx160 mm
Cabinet Parameters	Cabinet Type	Steel (Aluminum optional)	Steel (Aluminum optional)
	Cabinet Flatness	≤0.5mm	≤0.5mm
	Cabinet Dimension (WHThickness)	960mm960mm120mm (can be customized.)	960mm960mm120mm (can be customized.)
	Cabinet Resolution	96*96 Pixels	96*96 Pixels
	Cabinet Area	0.9216 m²	0.9216 m²
	Cabinet Weight	40-45 kg/m² (Steel Cabinet) 32-37 kg/m²(Aluminum)	40-45 kg/m² (Steel Cabinet) 32-37 kg/m²(Aluminum)
	Serviceability	Front/Back	Front/Back
	IP Rating	IP43, Indoor IP 65, outdoor	IP 65
Optical Parameters	White Balance Brightness	≥1500cd/m² ≥5500cd/m²	≥6500cd/m²
	Color Temperature	3200~9300K Adjustable	3200~9300K Adjustable
	Color Processing	14 Bit; 16 Bit	14 Bit; 16 Bit
	Optimum Viewing Distance	≥10 m	≥10 m
	Horizontal Viewing Angle	160⁰ (min 50% brightness)	120⁰ (min 50% brightness)
	Vertical Viewing Angle	140⁰ (min 50% brightness)	60⁰ (min 50% brightness)
	Luminance uniformity	≥97%	≥97%
	Color Uniformity	±0.005Cx,Cy	±0.005Cx,Cy
	Contrast	5000:1	5500:1
Electrical Parameters	Max. Power Consumption	400 W/m² 750 W/m²	750 W/m²
	Ave. Power Consumption	140 W/m²250 W/m²	250 W/m²
	Input Voltage	100v--240v(47--63Hz) 200v--240v(47--63Hz)	100v--240v(47--63Hz) 200v--240v(47--63Hz)
	Output Voltage	DC 5V	DC 5V
Processing Performance	Driving Mode	Constant Current 1/8 Scan Constant Current 1/2 Scan	Constant Current 1/4 Scan
	Frame Frequency	50&60 Hz	50&60 Hz
	Refresh Rate	≥1000Hz/ 2000 Hz/ 3840Hz	≥1000Hz/ 2000 Hz
	Control Way	Synchronous	Synchronous
Usage Parameters	Typical Life Values	100,000 Hrs	100,000 Hrs
	Working Temperature Range	- 20~60⁰C	- 35~80⁰C
	Storage Temperature Range	- 20~60⁰C	- 20~60⁰C
	Working Humidity Range (RH)	10~95%	10~95%
	Storage Humidity Range (RH)	10~95%	10~95%
The specifications above are for reference only and subject to change without prior notice, please feel free to contact us for specific projects.
